MOSQUITO threading machine for threads from M2 to M14

POWERFLEX® Mosquito tapping machine

Lightweight & flexible: With the ROSCAMAT® Mosquito thread cutting machine, you are already able to cut threads vertically and horizontally from M2 to M14.

Cutting internal and external threads

Screw in thread inserts such as ENSAT & HELICOIL

Simple thread forming

Powerflex Mosquito - the electric way to reduce your production costs.
Compared to pneumatic tapping arms, the Mosquito with its electronic drive has a significantly lower noise impact on the working environment, lower energy consumption and a maintenance-free motor. Another significant advantage is the infinitely variable speed regulation with the same power generation.

Advantages of the POWERFLEX® Mosquito tapping machine

Simple thread forming

Compact size

Maintenance-free high-frequency electric motor

Torsion-resistant

Can be used flexibly at a wide variety of workstations

Effortless screwing in of Ensat & Helicoil threaded sleeves

Perfectly suited for M2/ M3 threads

Also suitable for left-handers

Lightweight & flexible: With the Roscamat Mosquito tapping machine, you are already able to cut threads vertically & horizontally from M2-M14.

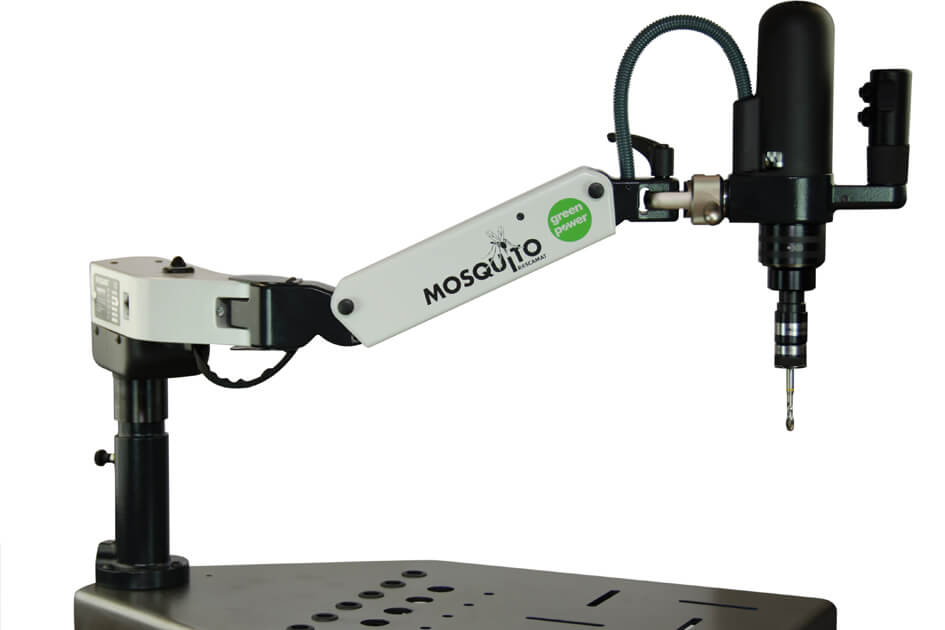

The machine itself consists of a radial arm joint that allows a working radius of 360 degrees and a tilting arm that is balanced by means of a gas pressure damper. The head element and the electric motor are located at the end of the tilting arm and adapt so that they always move at a 90° angle in relation to their working range. The machine can also be easily operated by left-handed users. The rotary motor can be adjusted using potentiometers located above the "radial arm". The speed can therefore be adapted to any type of thread.

With the compact, electric Roscamat Mosquito tapping machine, threads can be cut very easily and safely in aluminum, steel or plastic. Even very small threads such as M2/M3 are no problem for you with the balanced, torsion-resistant thread cutting arm, which is precisely aligned at a 90° angle. The efficient, maintenance-free high-frequency motor and accurately adjustable cutting and return speed cut threads from M2-M14 (steel) quickly and safely. Thanks to the swiveling thread cutting head, you can also cut horizontal threads with ease. The very compact and space-saving machine can be attached to almost any workstation using a clamping system, or alternatively attached to the Siegmund welding and clamping table systems using an adapter plate.
