POWERFLEX® Shark tapping machine

Powerhouse & all-rounder, our electric thread cutting machine, the Roscamat Shark can cut threads up to M36 in steel / M42 in aluminum.

Thread cutting with depth adjustment

Screw in thread inserts such as ENSAT & HELICOIL

Simple thread forming

The most powerful of our electric tapping machines

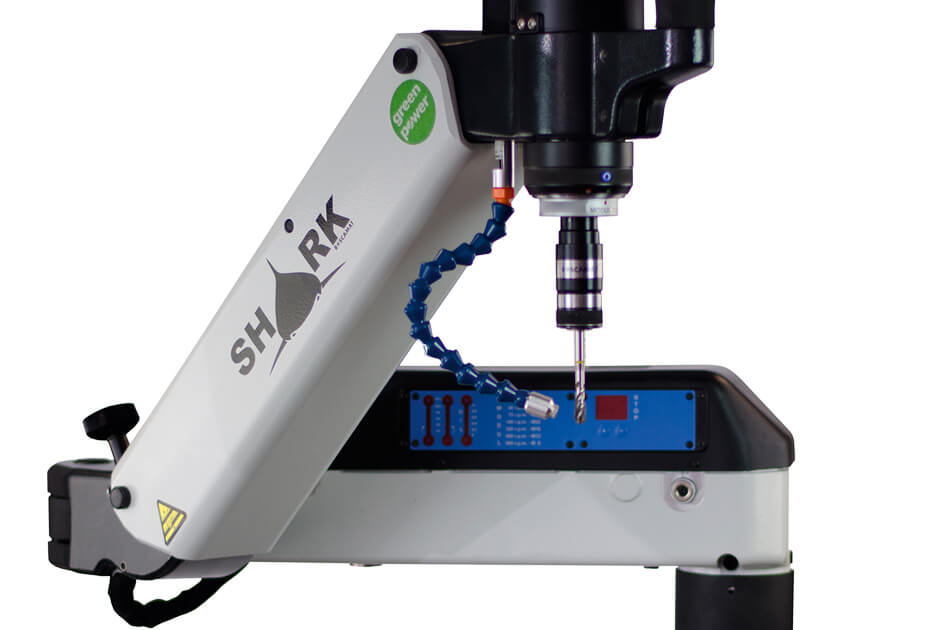

The Roscamat Shark electric threading machine is the most powerful of our machines. It can cut threads up to M36 in steel and M42 in aluminum. Various gearboxes allow you to cut smaller threads at very high speed and large threads with high torque. The machine is equipped with a cutting depth adjustment as standard, which automatically switches to reverse as soon as the preset and desired depth is reached.
The lubrication system, which is also included, significantly increases the service life of your taps and thread formers.
Thanks to the sophisticated design of the machine, it is handy, compact and torsion-resistant despite its strength.

Advantages of the POWERFLEX Shark tapping machine

Can be used from M3-M36 (steel)

Very strong and robust machine

Very easy handling

Cutting depth adjustment included

Lubrication system included

Effortless screwing in of Ensat & Helicoil threaded sleeves

Simple thread forming

Can be used at various workstations

Our electric thread cutting machine, Roscamat Shark, is the most powerful in our machine park. You can use it to cut threads from M2 to M36 in steel and M42 in aluminum. The machine is fully equipped as standard with vertical cutting depth adjustment and lubrication system.
The Roscamat Shark tapping machine is characterized in particular by its great power and adaptability.

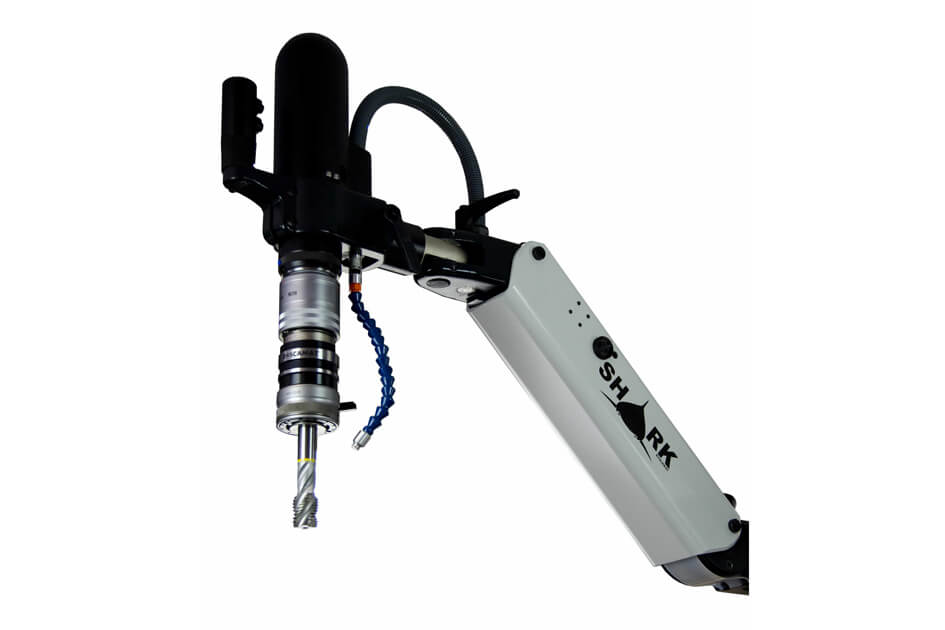

The head element and the electric motor are located at the end of the tilting arm and adapt so that they always move at a 90° angle in relation to their working range. The machine can also be easily operated by left-handed users.

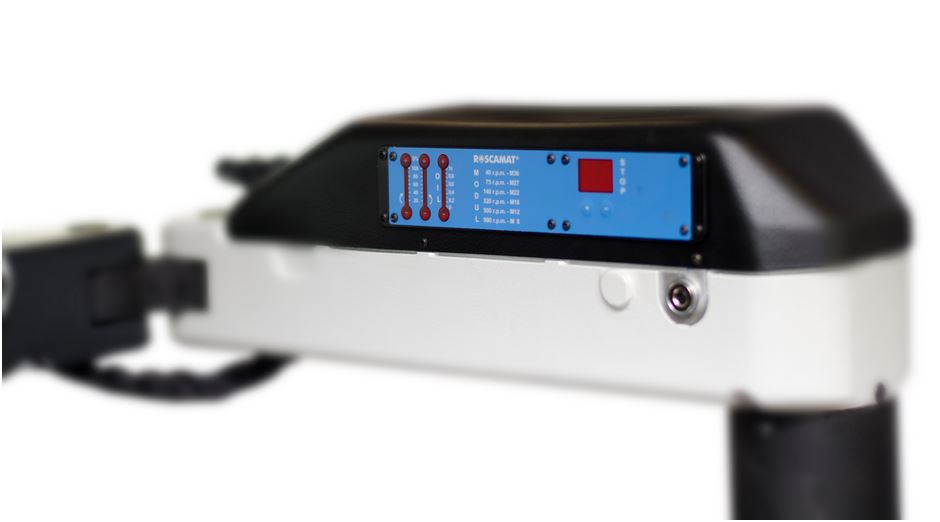

The speed is controlled via a circuit board in the "control box housing". Automatic lubrication and vertical depth control can be set using the buttons above the "radial arm". The speed can therefore be adapted to any type of thread.
Equipped with a single-phase 220 V HIGH FREQUENCY MOTOR with 750 watts and 50/60 Hz, the modular system, which consists of a series of 7 quick-change modules (reduction gears), can be individually adapted. This provides output speeds that allow the speed to be individually adjusted. The appliance can be used anywhere where there is a power socket.

The very compact and space-saving machine can be attached to almost any workstation using a clamping system, or alternatively attached to the Siegmund welding and clamping table systems using an adapter plate.
The Roscamat Shark electric tapping machine is the most powerful of our machines. It can cut threads up to M36 in steel and M42 in aluminum. Various change gears allow you to cut smaller threads at very high speed and large threads with high torque.
The machine is equipped with a cutting depth adjustment as standard, which automatically switches to reverse as soon as the preset and desired depth is reached.
The lubrication system, which is also included, significantly increases the service life of your taps and thread formers.
Thanks to the sophisticated design of the machine, it is handy, compact and torsion-resistant despite its strength.

You can find the success story here:

POWERFLEX® Shark success story

Modules

M35/40

Speed in 1/min 40
Torque in Nm 340
⌀ Clutch 48/3
Max. Thread size aluminum 42
Max. Thread size steel 36

M27/75

Speed in 1/min 75
Torque in Nm 185
⌀ Clutch 31/2
Max. Thread size aluminum 33
Max. Thread size steel 27

M20/140

Speed in 1/min 140
Torque in Nm 95
⌀ Clutch 31/2
Max. Thread size aluminum 27
Max. Thread size steel 20

M16/320

Speed in 1/min 320
Torque in Nm 44
⌀ Clutch 19/1
Max. Thread size aluminum 20
Max. Thread size steel 16

M12/500

Speed in 1/min 500
Torque in Nm 28
⌀ Clutch 19/1
Max. Thread size aluminum M16
Max. Thread size steel 12

M10/900

Speed in 1/min 900
Torque in Nm 15
⌀ Clutch 19/1
Max. Thread size aluminum M10
Max. Thread size steel 8

1400

Speed in 1/min 1400
Torque in Nm
⌀ Clutch Drill chuck
Max. Thread size aluminum
Max. Thread size steel ⌀8
