Handling system mirecs® Easylift

From simple hooks to semi-automatic handling systems with our experience of thousands of grabs for countless applications and with our enthusiasm for solutions, we manufacture and adapt the load handling device suitable for your needs at mirecs easylift.

Powerflex® Your supplier for development and design, tooling and clamping systems, CNC manufacturing, lifting technology | handling, gripping systems for robot handling, as well as plant and fixture construction with strong dynamics and growth.

We offer innovative solutions for your demanding tasks and implement them with commitment and competence. The protection of the environment and health determines our actions. We are committed to fair, sustainable and socially responsible business practices. With products such as easylift, Powerflex® demonstrates innovative strength that is directly oriented to the needs of our customers.

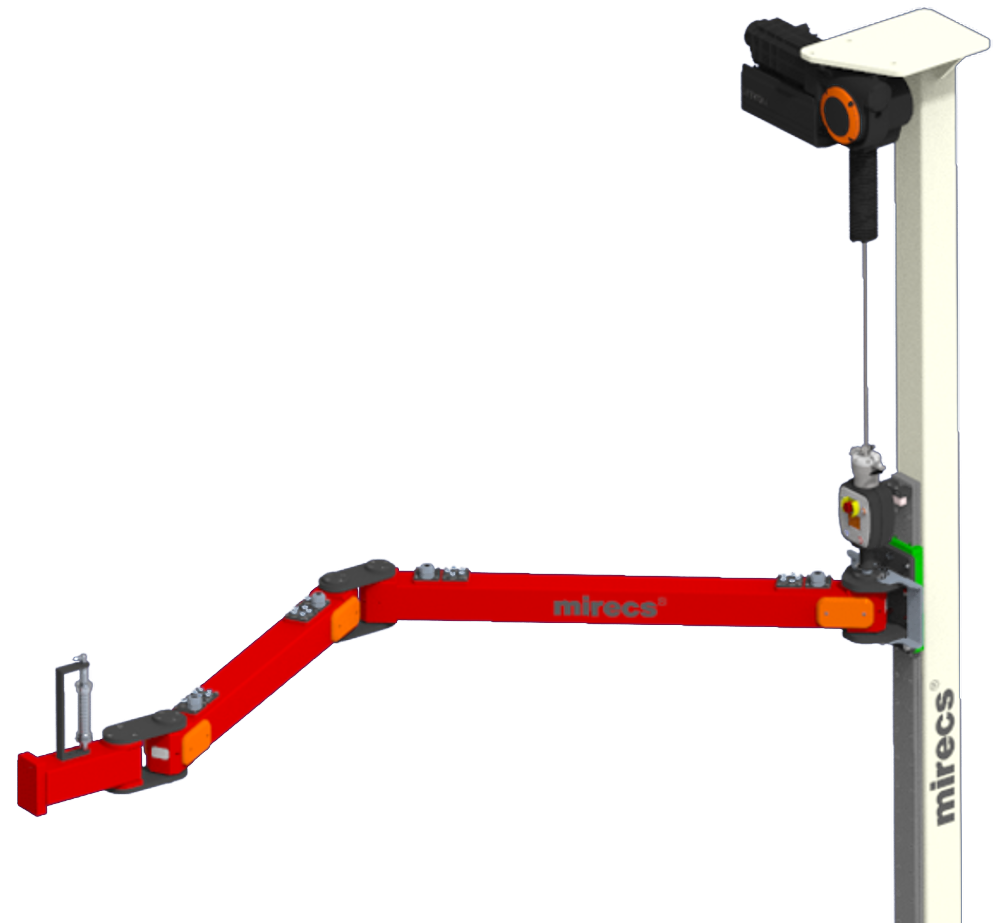

Unique like the human arm. With a maximum boom length of 3,500 mm, our easylift allows up to 150 kg to be moved flexibly and ergonomically.

We manufacture the column height, cantilever and pitch of the arm segments required for your application exactly according to your wishes. The design of the center joint as a double joint allows a working radius of almost 360° and a space-saving parking position.

The electric rope balancer with innovative load control allows you to move up to 150 kg quite simply with your thumb and index finger. You operate the handle just a few millimeters up or down; the handling system follows your movement with maximum precision.

The electric chain ho ist for solid handling. On request, we can also install an electric chain hoist. This hoist allows effortless lifting and lowering of the load at the push of a button. We are also happy to check the possibility of adapting your provided hoist.

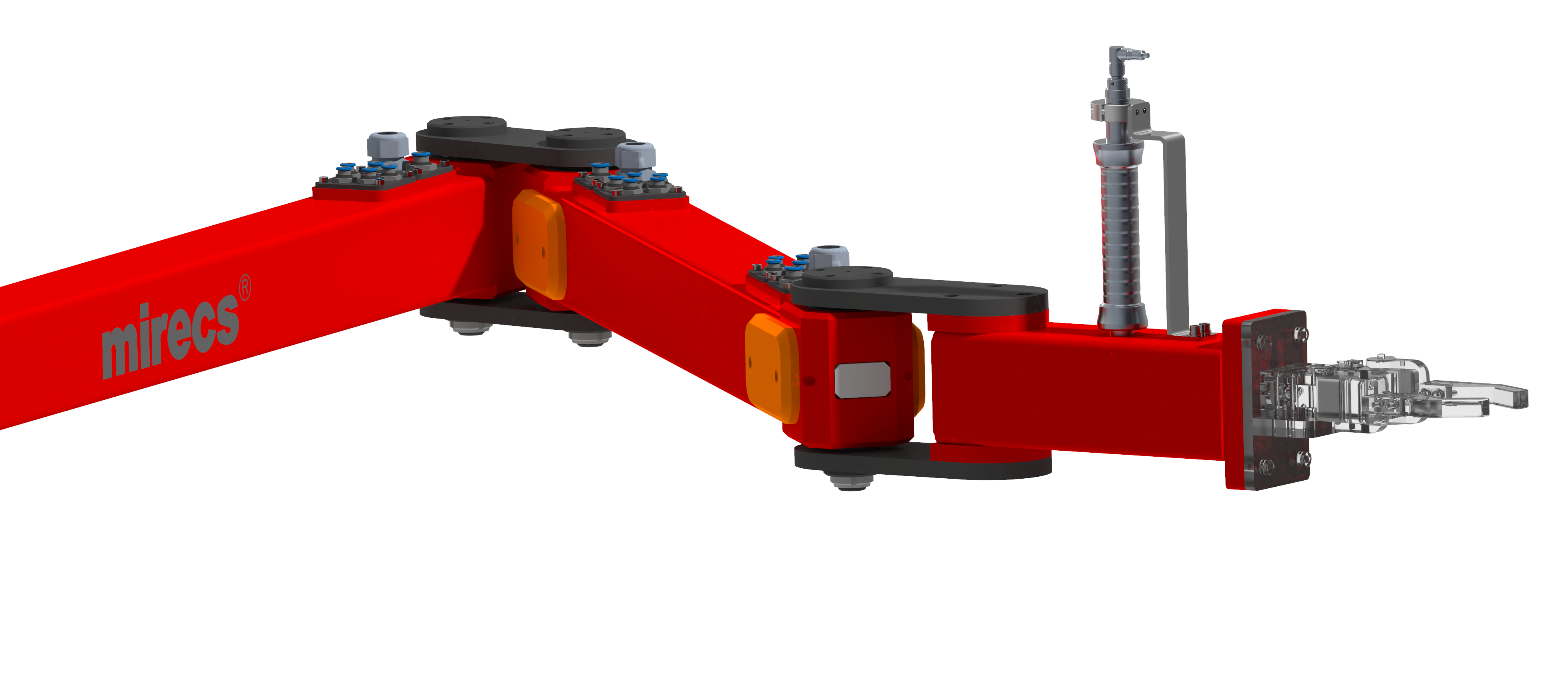

The possibilities for gripper adaptation range from simple hooks to semi-automatic handling systems. With our experience of thousands of grippers for countless applications and with our enthusiasm for solutions, we manufacture and adapt the load handling device suitable for your needs on the easylift. Our standard flange plate is used to connect the load handling device. If you want to use pneumatic, magnetic, electric or vacuum-operated handling systems, we can supply the corresponding media to the load handling device via interfaces.

The immersion function:

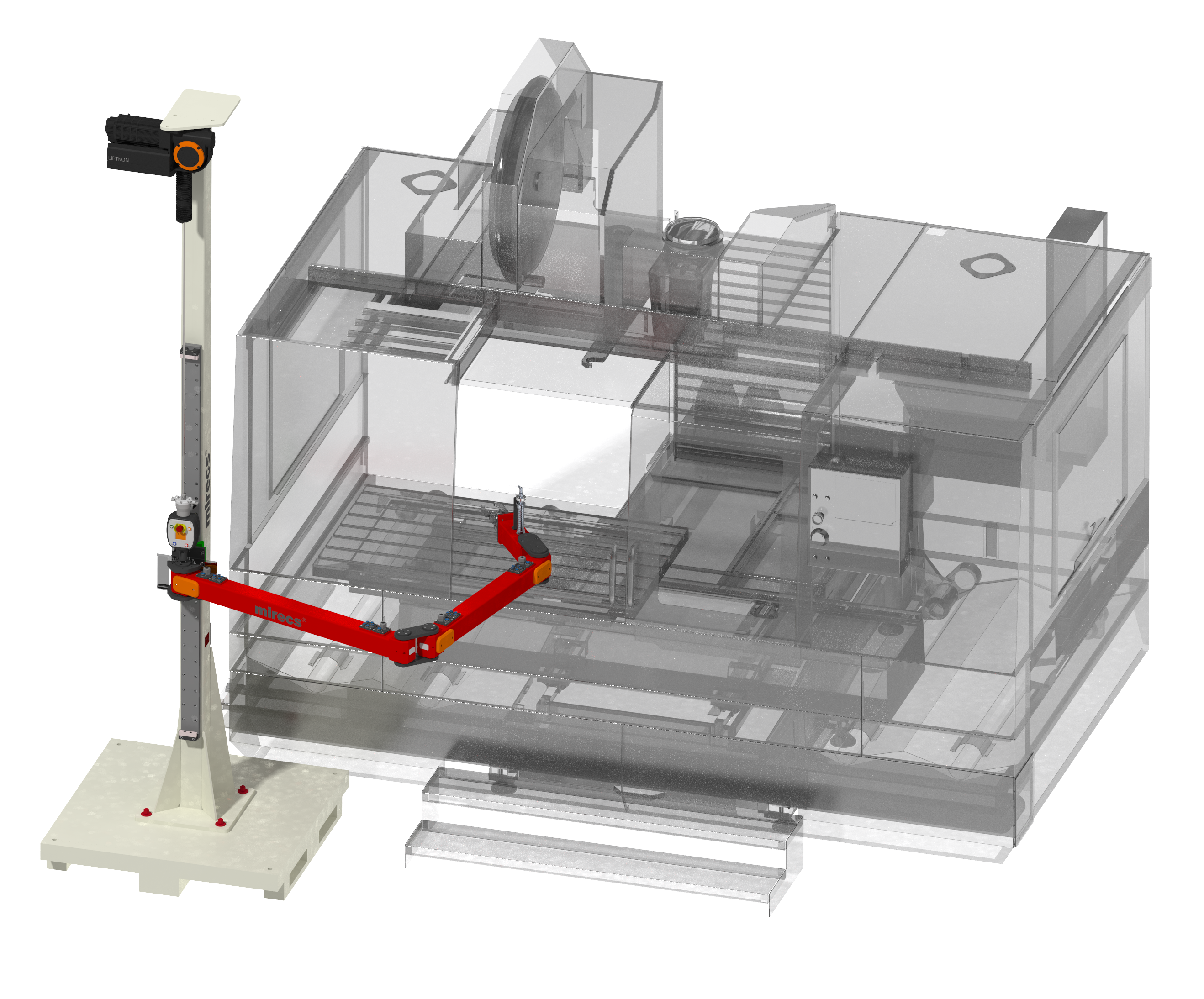

The vertically guided boom arm with its swivel joints resembles the human arm. Plunging into interfering contours offers a unique advantage over standard crane technology available on the market. For example, for loading and unloading machine tools. You will be thrilled.

The easylift can be used flexibly at different locations; equipped with mobile base plate or stationary fixed to the hall floor with composite anchor technology.

easylift - outstanding ergonomics, unbeatable value.

The electric rope balancer with innovative load control

Unique like the human arm. With a maximum boom length of 3,500 mm, our easylift allows up to 150 kg to be moved flexibly and ergonomically.

We manufacture the column height, cantilever and pitch of the arm segments required for your application exactly according to your wishes. The design of the center joint as a double joint allows a working radius of almost 360° and a space-saving parking position.

Areas of application of the Easylift

Tool and mold making

Plastics processing industry

Sheet metal working

Mechanical Engineering

Automotive industry

Contract Manufacturing Operations

Workshops for the disabled

Universities

Supra-company training centers

Machine tool dealer

Handicraft enterprises

The immersion function

The vertically guided boom arm with its swivel joints resembles the human arm. The immersion in interfering contours offers a unique advantage over the standard crane technology available on the market. For example for loading and unloading machine tools. You will be thrilled.

Mobile or stationary

The mirecs easylift can be used flexibly at different locations; equipped with mobile base plate or stationary fixed to the hall floor with composite anchor technology.

Facts about the Easylift

The horizontal boom

With a maximum cantilever length of 3,500 mm, our easylift allows up to 150 kg to be moved flexibly and ergonomically. We manufacture the column height, cantilever and pitch of the arm segments required for your application exactly according to your wishes.

Working area and
Parking position

The design of the center joint as a double joint allows them a working radius of almost 360° as well as a space-saving parking position.

The electric rope balancer
with innovative load control

Move up to 150 kg easily with thumb and forefinger. Just move the operating handle up or down a few millimeters, and the handling system follows your movements with maximum precision.

The electric chain hoist for solid handling

Upon request, we can alternatively install an electric chain hoist. This hoist allows effortless lifting and lowering of the load at the push of a button. We are also happy to check the possibility of adapting your provided hoist.
