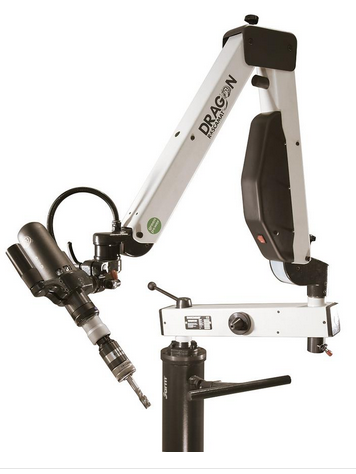

POWERFLEX® Dragon threading machine

Our threading machine with the largest reach. You can cut threads from M2-M27 in a radius of over 2 m and at any angle and screw in thread inserts.

Simple thread forming

Screw in thread inserts such as ENSAT & HELICOIL

Powerflex Dragon - the electric way to reduce your production costs.
With its electronic drive, the Dragon enables extremely low noise pollution of the working environment, low energy consumption as well as the avoidance of high maintenance costs to the greatest possible extent. Another significant advantage is the infinitely variable speed regulation with the same power generation.

Advantages of the POWERFLEX Dragon threading machine

Extreme reach R>2000 mm / Ø4000 mm

Easy handling despite large threading arm

Thread cutting at any angle

Torsionally stiff

Simple thread forming

Effortless screwing in of Ensat & Helicoil threaded sleeves

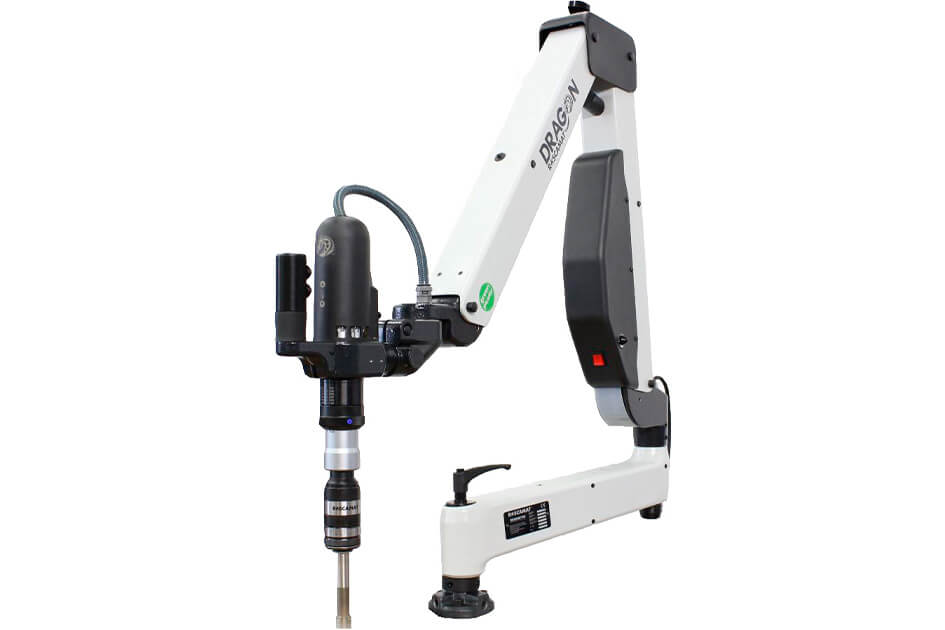

The electric threading machine, Roscamat Dragon you can compare with the Roscamat Tiger, only the Dragon has an unbeatable working radius. You can hold and cut with the Roscamat Dragon, threads from M2 to M27 in steel in a radius of over 2.20 m and at any angle. The Roscamat Dragon threading machine is particularly characterized by its long reach, so you can easily work on large laser-cut sheets, for example.

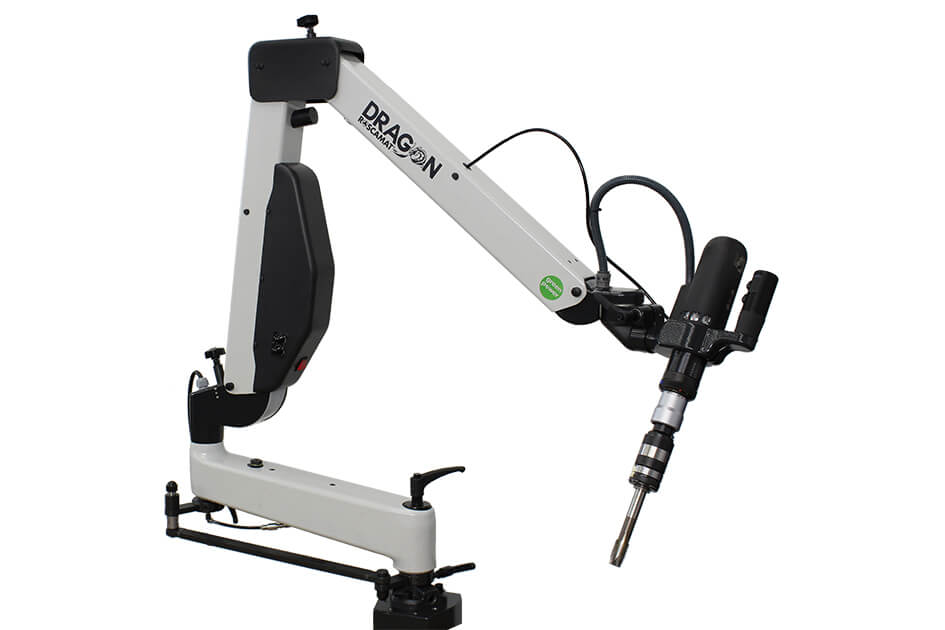

The machine consists of a radial that supports both articulated arms and can be adjusted using the control handwheels to position them at the operator's convenience. The multi-position head is a double swivel joint device that allows both swivel pins to be locked and unlocked to position and keep the head locked to work in any room position.
The speed is controlled by a circuit board in the "control box housing".

The automatic lubrication is adjustable via the keys above the "radial arm". You can thus adapt the speed to any type of thread. The head element and the electric motor are located at the end of the tilting arm and adjust so that they always move at 90° with respect to their working area. You can easily operate the machine even as a left-handed operator.
Equipped with a single-phase 220 V high-frequency motor with 750 watts and 50/60 Hz, you can customize the modular system, which consists of a series of 7 quick-change modules (reduction gears). This provides you with output speeds that allow you to customize the speed. You can use the unit anywhere there is a power outlet.
The very compact and space-saving machine can be attached to almost any workstation using a clamping system, or alternatively can be attached to the Siegmund welding and clamping table systems using an adapter plate.

Modules

M27/90

Speed in 1/min 90
Torque in Nm 150
⌀ Coupling 31
Max. ⌀ Alu M30
Max. ⌀ steel M27

M20/170

Speed in 1/min 170
Torque in Nm 79
⌀ Coupling 31
Max. ⌀ Alu M24
Max. ⌀ steel M20

M16/300

Speed in 1/min 300
Torque in Nm 44
⌀ Coupling 19
Max. ⌀ Alu M16
Max. ⌀ steel M16

M12/550

Speed in 1/min 550
Torque in Nm 24
⌀ Coupling 19
Max. ⌀ Alu M14
Max. ⌀ steel M12

M10/750

Speed in 1/min 750
Torque in Nm 17
⌀ Coupling 19
Max. ⌀ Alu M12
Max. ⌀ steel M10

M8/1050

Speed in 1/min 1050
Torque in Nm 12,5
⌀ Coupling 19
Max. ⌀ Alu M8
Max. ⌀ steel M8

2100

Speed in 1/min 2100
Torque in Nm 6
⌀ Coupling
Max. ⌀ Alu ⌀8mm
Max. ⌀ steel Drill chuck
